    XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

    Ask Lasest Price
    Brand Name : XDEM
    Model Number : WL-75X / WL-90X / WL-120X / WL-150X / WL-260P / WL-300P
    Certification : CE
    Price : US$23800 1Set
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

    Product Information

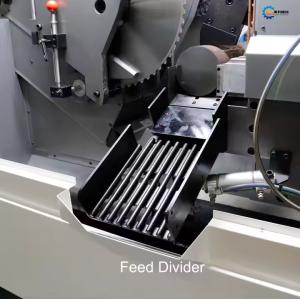

    This machine is a fully automatic high speed metal circular saw machine, it specially designed for cutting round solid rods and square solid rods, according to customer’s requirements for high speed cutting and high precision cutting. Fully automatic Precision Circular Saw Machine is built with a PLC-controlled automation system. Made from high-quality raw materials, our machine provides precision and in-depth sawing with its Ceramic saw blades and stainless steel blades, increasing productivity while reducing labor. The Machine consists of a Spindle Box, Mitsubishi Servo Motor, Servo Feeding System, Discharge Device, Hydraulic Clamping, Oil Mist System, Feeding Rack and so on. It can cut all kinds of Metal Materials.

    Parameters


    Machine ModelWL-75XWL-90XWL-120XWL-150XWL-260PWL-300P
    Sawing CapacityBar(mm)12--7512--9020--12040--150120--260160--300
    Square Materials(mm)12--4512--7020--8040--105120--195160--220
    Round Tube(mm)12--7512--9020--12040--150120--260160--300
    Square Tube(mm)12--4512--7020--8040--105120--195160--220
    Head SpindleSaw Blade Diameter (mm)250-285 t2.0315 t2.25380 t2.6460 t2.7840 t4.0840 t4.0
    Spindle Speed(rpm)20--16020--15020--12020--7015-4015-40
    Spindle Servo Motor(KW)7.51111154545
    Feeding ClampsSingle Feed Length(mm)10--80010--80010--80010--80010--80010-800(mm)
    Hydraulic DeviceHydraulic Drive Motor(KW)2.25(4P)2.25(4P)3.75(4P)3.75(4P)5.5(4P)5.5(4P)
    Pressure Range (MPa)777777
    Hydraulic Oil Capacity (L)9070110120160170
    Size and WeightWeight: Machine and Rack (KG)42004000600067001260013000
    Size (mm)

    7500X2900

    X2100

    7500X2900

    X2000

    7700X3200

    X2250

    7700X3400

    X2250

    8300X4150

    X2570

    9120X4400

    X2605
