Brief Introduction of Concrete mixer Pump

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

Items		Parameters
Whole performance of machine	Max. theo. concrete output	40m3/h
	Max.concrete pumping pressure	10MPa
	Distribution valve type	S Valve
	Concrete cylinder diameter×stroke	Ф180×1100mm
	Hopper capacity	550L
	Outlet diameter	Ф150mm
Power syste	Winding motor power	5.5KW
	Stir the motorPower	4.5KW
	Water pump motor powe	0.55KW
	Electrical engineering power	45KW
	Rotate speed	1480r/min
Hydraulic system	Circuit type	Open circuit
	Pumping system pressure	28MPa
	Mixing system pressure	6-8MPa
	Capacity of oil tank	370L
The biggest transportation is away from vertically (/Level)		120/500m
Other parameters	Max.aggregate diameter	Scree:40 50mm
	Inside diameter of delivering pipe	Ф125mm
	Dimensions:length×width×height	4200x2300x3150mm
	Total weight	4500KG

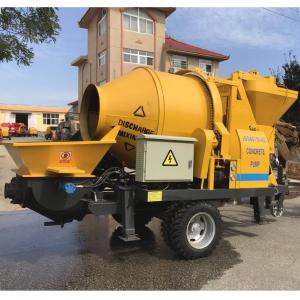

Mixer with pump

1.450 drum mixer wear-resistant steel plate 8 wall thickness 2. Dual tires can run smoothly on rough roads 3. There are lifting jacks at the traction place to facilitate lifting 4. Customized color Machine tough guy can also change color 5. Tips when working. As long as the equipment is leveled when working, the rollers will not be worn. 6. Customizable hydraulic outriggers Double tire design 7. Kawasaki 112 main oil pump, quality assurance, durable 8.45kW Weihai Juli copper core motor 9. Wireless remote control 10. Separate gear pump controls hopper stirring, clear division of labor, stable performance and easy maintenance
