    XDEM WZ776 93kw Backhoe Loader Machine, Loader With Backhoe

    Ask Lasest Price
    Brand Name : Changlin
    Model Number : WZ776
    Certification : ISO
    Price : USD37600
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 UNIT PER Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

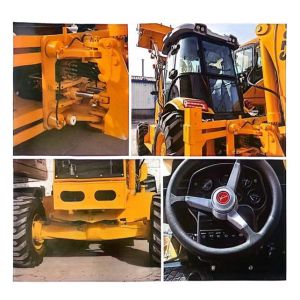

    XDEM WZ776 93kw Backhoe Loader Machine, Loader With Backhoe

    XDEM Mini backhoe Loader Cheap WZ776 Backhoe Loader 8Ton backhoe loader


    Specification of WZ776 backhoe loader


    Four-wheel steering Weighted front and rear axles Reinforced telescopic boom Luxury cab

    The new backhoe loader Model SZ776,four-wheel steering,four-in-one bucket, Weighted front andrear axles, 16.9R24 tires, reinforced telescopic boom, four-wheel drive, optional four-wheel brakes,A-type outriggers with lock or H-type outriggers can optional to ensure stable work. At the sametime,the digging device has the function of side shifting, the digging range is wider, the design ofthe whole machine is reasonable, flexible and durable, and the transition is fast and convenient.because of its unique structure. The front end is a loading device and the back end is an excavatingdevice.The digging end structure and hinge point are advanced, the bucket corner is large, and thesoil holding capacity is strong.


    Technical Dimension
    Length x Width x Height6150x2365x3750mm
    Wheel Base2200mm
    Breakout Force38KN
    Min.Ground Clearance300mm
    Total Weight8200KG
    Maximum Speed22Km/h
    Maximum Grade ability Capacity50°
    Loading Bucket Capacity1.0m³
    Bucket width2200mm
    Loading Capacity2500KG
    Bucket Discharge Height2650mm
    Bucket Discharge Distance1025mm
    Backhoe Bucket Capacity0.3m3
    Backhoe Discharge Height3550mm
    Maximum Digging Depth4085/4500mm
    Bucket Slewing Angle190°
    Axles
    Rated dynamic /static load of front axle9T/22.5T
    Rated dynamic / static load of rear axle7.5 /18.75T
    Diesel Engine
    Type4BTA3.9-C125
    ModelCUMMINS 93KW
    Optional Enginesame with offer sheet
    Typeturbocharging four-stroke
    Rated Speed2200rpm
    Transmission System
    Torque ConverterYJ280
    Torque60KN
    TypeSingle-stage Three Elements
    Max.Efficiency0.8
    Steering System
    TypeArticulated hydraulic steering)
    Steering Angle36°
    Minimum Turning Radius6581mm
    Brake System
    Service BrakingAir over hydraulic disc on 4 wheels
    Parking BrakeManual parking brake
    Hydraulic System
    System Flow140L/min
    Bucket Digging Capacity46.5KN
    Bucket Stick Digging Capacit31KN
    Bucket Lifting Time5.4S
    Bucket Lowering Time3.1S
